Selection Fill

• Where to find it:

• Add Procedural Layer / Geometry / Extension Pack /

• NodeGraph / Right Mouse Click / Add Nodes / Geometry / Extension Pack /

• Tips

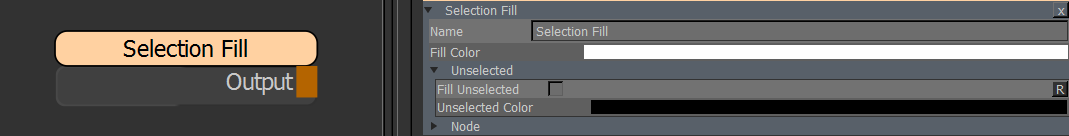

• Node Overview

• Node Properties
• Main
• Unselected

Selection Fill will fill your current selection with the color specified in the node.

Your current selection is determined by Mari's Selection Mode, such as Object, Patches or Faces:

The node will update the selection continuously based on the current one until it is 'baked' by choosing

'Convert to Paintable' or the channel it is in is flattened.

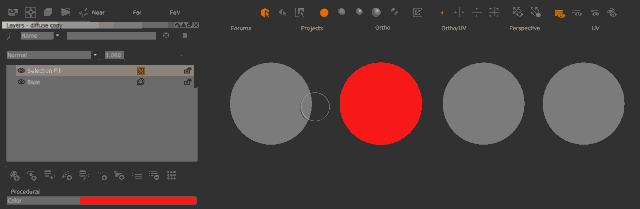

Filling a selection on the fly

If after running 'Convert to Paintable' you are seeing faint seams between UV Shells, run a Patches/Bleed Patch Edges on your layer

• Fill Color

The color to fill the current selection with

• Fill Unselected

If on, the node will fill the unselected areas of your model with the Unselected Color.

Otherwise unselected areas will remain transparent

• Unselected Color

The color to fill the currently unselected areas with if Fill Unselected is enabled
