Extension Pack for MARI

• Shortcut

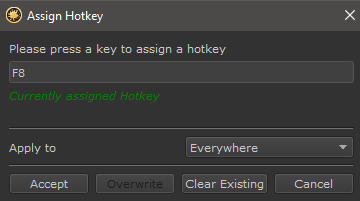

Set the Shortcut for the currently selected Hotbox

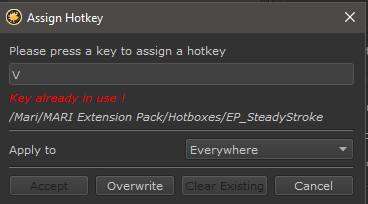

If a conflict is detected you have the option to force-ably overwrite the assignment

You can change to Context the Hotkey applies to from Everywhere to Nodegraph Only

to define Hotkeys that only have an effect in the Nodegraph

The Shortcut Field in the Hotbox Options displays a Nodegraph Only Shortcut appended with a '(NG)'

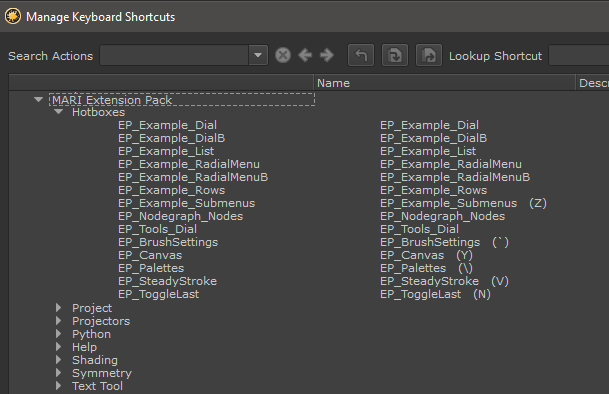

Hotbox Hotkeys can also be defined via the Mari Shortcut Editor available in the Main Window's Edit Menu.

• Display Name

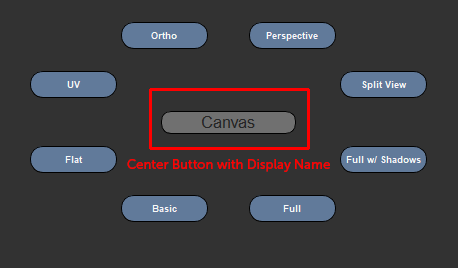

The Display Name is the text shown in the center of a Hotbox if the Center Button is visible

• Hotbox Type

The Hotbox Type determines the basic shape, distribution and available options of a Hotbox

• Row Based

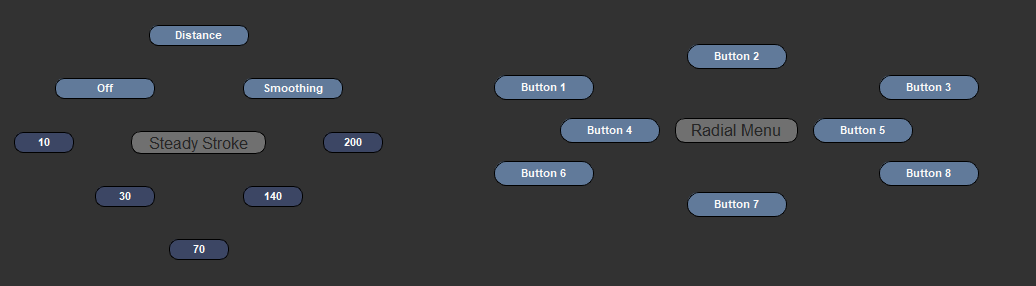

Two separate examples of Row Based Hotboxes. The first one has its Center Button hidden.

• Radial (maximum 8 Buttons)

Two separate examples of Radial Hotboxes. Radial Hotboxes can have a maximum of 8 Buttons.

The second one uses a Radial Indent on the Center Buttons.

• Dial

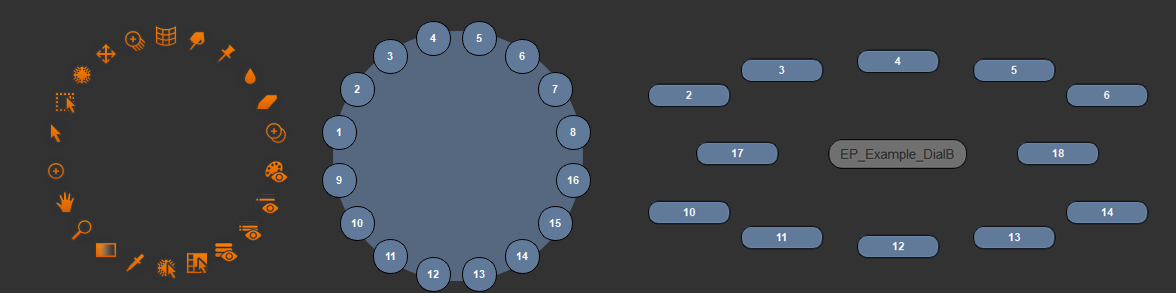

Three separate examples of Dial Hotboxes. The first two have their Center Buttons hidden

The second one has a backdrop, the third one has a squash factor and custom button positioning.

• Launch Mode

The Launch Mode determines how the Hotbox reacts to being launched by a Shortcut

• Single Tap

After having been launched via a Hotkey, the Hotbox will stay open even if the Hotkey is released

It will close once

• a button has been clicked (if Close on Button Click is active)
• the right mouse button is clicked
• the hotkey or any other key is pressed

• Press and Hold

After having been launched via a Hotkey, the Hotbox will stay open as long as the Hotkey is pressed down

• Close on Button click

When on, a click on a button automatically closes the Hotbox.

When off, the Hotbox will say open until

• the right mouse button is clicked
• In Press and Hold Launch Mode: The Hotkey is released
• In Single Tap Launch Mode: A key is pressed

• Execute on Close

When on, any button that is marked active is automatically executed as soon as the Hotbox closes even if the user didn't click a mouse button

This works especially well with the Use Aiming setting to rapidly execute a button without being very precise in clicking on the button

• Execute on Btn. Activation

If on, a button will be executed as soon as the cursor moves over it .. without any clicking or pressing keys.

• Maintain Positions

When on, adding a new button will not affect the position of existing buttons to aid with Muscle Memory

• Use Aiming

Aiming draws a virtual line from the center of the Hotbox through your cursor. Any button closest to the Cursor is marked active.

This works especially well with the Execute on close setting to rapidly execute a button without being very precise in clicking on the button

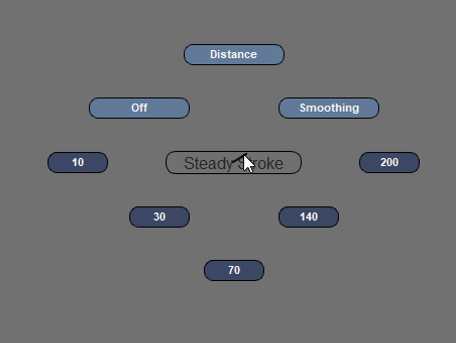

Example of Aiming. Buttons become active without being directly

touched by the cursor

• Show Tooltips on Icons

If Buttons are only displayed as icons and this setting is turned on, a Tooltip appears with the Button Label/Name when the Mouse hovers over the Icon.
