Input Switch X4 by Jens Kafitz


  • Where to find it: (This Node is available in the Nodegraph only)


    • NodeGraph / Right Mouse Click / Add Nodes / Layer / Extension Pack /

This Node is also available as a version with 11 Inputs Input Switch X11




The Input Switch will switch between 4 Inputs based on a step value provided by the 'Case Selection' Connection

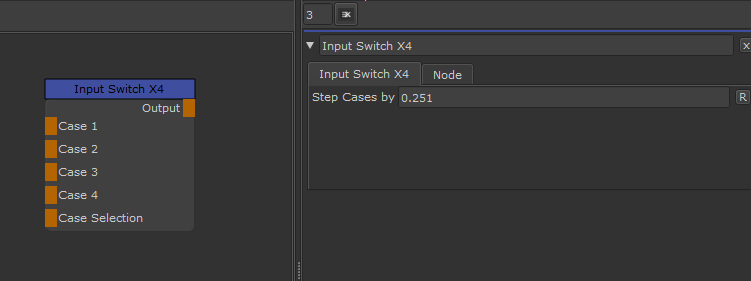

Node Overview



Node Ports


  • Case 1 - 4

The different Inputs the Node will cycle through


  • Case Selection

Provides the Value that is used to determine which Case (1,2,3 or 4) to output from the Node.

If nothing is attached to this connection Case A is used.


Node Properties


MAIN TAB


  • Step Cases by

The Value Range between each Case.

By default a value of 0.25 is used meaning that on a Value range of 0-1 fed in via the Case Selection Connection

the node will output


    • Case 1 for 0-0.25
    • Case 2 for 0.25 - 0.5
    • Case 3 for 0.5 -0.75
    • Case 4 for 0.75 - 1.0
