Extension Pack for MARI

• Where to find it:

• Add Procedural Layer / Procedural / Extension Pack / Pattern /

• NodeGraph / Right Mouse Click / Add Nodes / Procedural / Extension Pack / Pattern /

---

• Samples

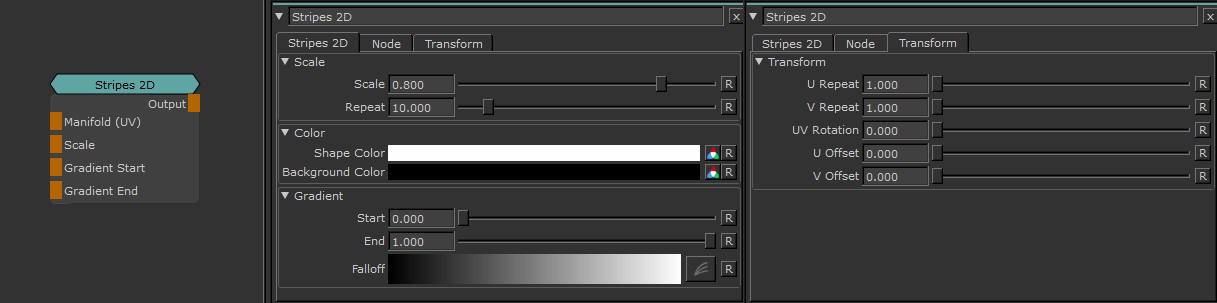

• Node Overview
• Node Ports
• Node Properties

• Main Tab

• Scale
• Color
• Gradient
• Transform Tab
• Transform

Stripes 2D creates Line Patterns. Generation is done based on UV Space so there will be seams between tiles and uv shells.

With the help of the included remapping you can create more complex patterns.

Combining multiple Stripes2D Nodes for a more complex pattern

• Manifold (UV)

Overwrite the default UVs used with custom uvs (for example through a Manifold UV Node).

This can be used to control UV settings from a separate node entity

• Scale

Control the Scale of the result. Overwrites Scale Slider

• Gradient Start

Control the Gradient Start. Overwrites Start Slider

• Gradient End

Control the Gradient Start. Overwrites End Slider

MAIN TAB

• Scale

Scale of each shape. Decreasing shape size increases gap size between shapes.

• Repeat

The number of stripes to draw.

• Shape Color

Color of each stripe

• Background Color

Color of area around stripes.

• Start

The Value range up to which Background Color is drawn.

• End

The Value representing the full Shape Color.

• Falloff

Remap Curve against the final result.

---

TRANSFORM TAB

• UV Rotation

Rotating in degrees. Pivot is the center of each UV Tile / UDIM.

• U Offset

Translates stripes horizontally in UV Space.

• V Offset

Translates stripes vertically in UV Space.

This slider usually doesn't have any effect due to the vertical nature of the stripes.

• U Repeat

Multiplier against 'Repeat' for the number of stripes drawn horizontally in UV Space.

• V Repeat

Multiplier against 'Repeat' for the number of stripes drawn vertically in UV Space.

This slider usually doesn't have any effect due to the vertical nature of the stripes.
