• Where to find it:

• Add Adjustment Layer / Extension Pack / Color Correction /

• NodeGraph / Right Mouse Click / Nodes / Filter / Extension Pack / Color Correction /

• Video

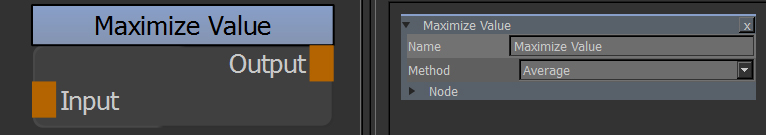

• Node Overview

• Node Properties
• Main Tab

Maximize Value will offset the RGB Colors until one of them reaches a value of 1.0.

This is mostly useful for the creation of Specular Color Maps for Metallic Surfaces where

you don't want to take out Specular Intensity (in order to remain Energy Conserving) while

at the same time giving tinted specular highlights.

MAIN TAB

• Method

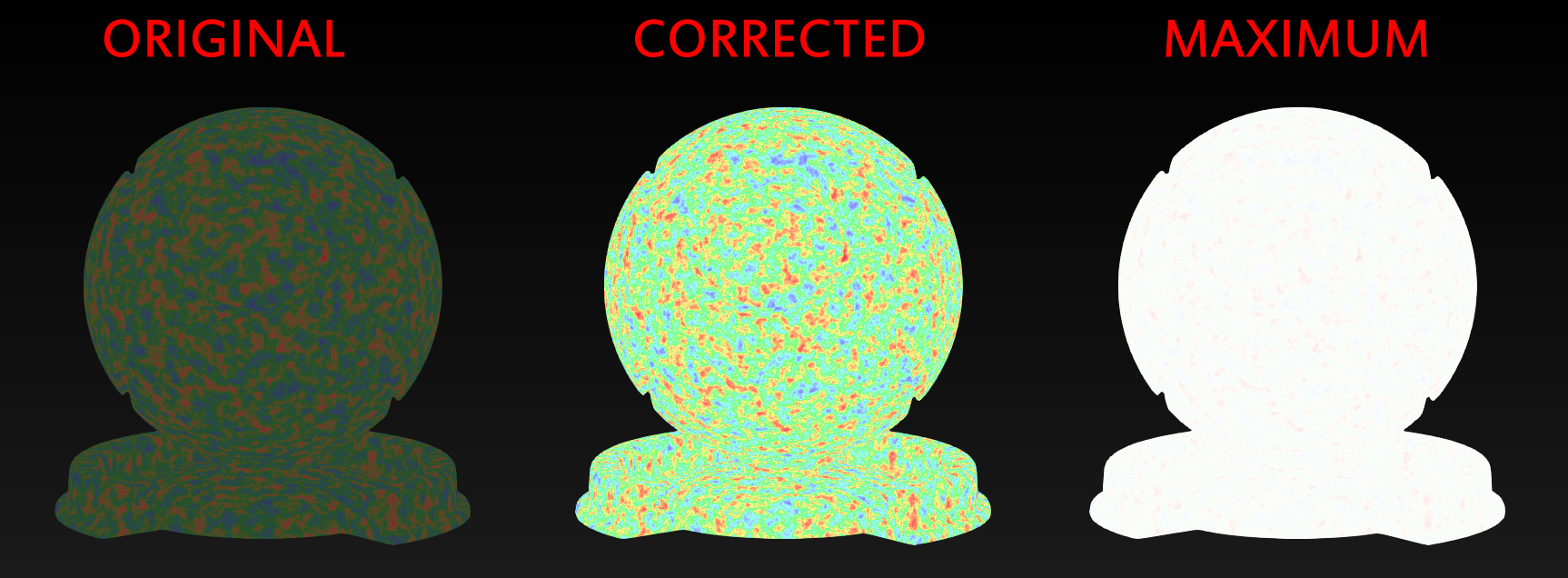

The Method used for offsetting the RGB Colors:

Corrected

The Corrected Method will set the Value (Hue/Saturation/Value) of all Colors to 1.0.

There will be no value below 1.0 left on the input texture.

Maximum

The Maximum Method will determine the highest value for each pixels Red, Green and Blue Channel

and offset all color channels to 1.0 (Input  + (1.0 - Highest Value) )
