Extension Pack for MARI

• Where to find it:

• Main Window / Layers / Mask Shelf / Procedurals Tab

• NodeGraph / Right Mouse Click / Masks / Mask Shelf / Procedurals Tab

---

• Node Overview

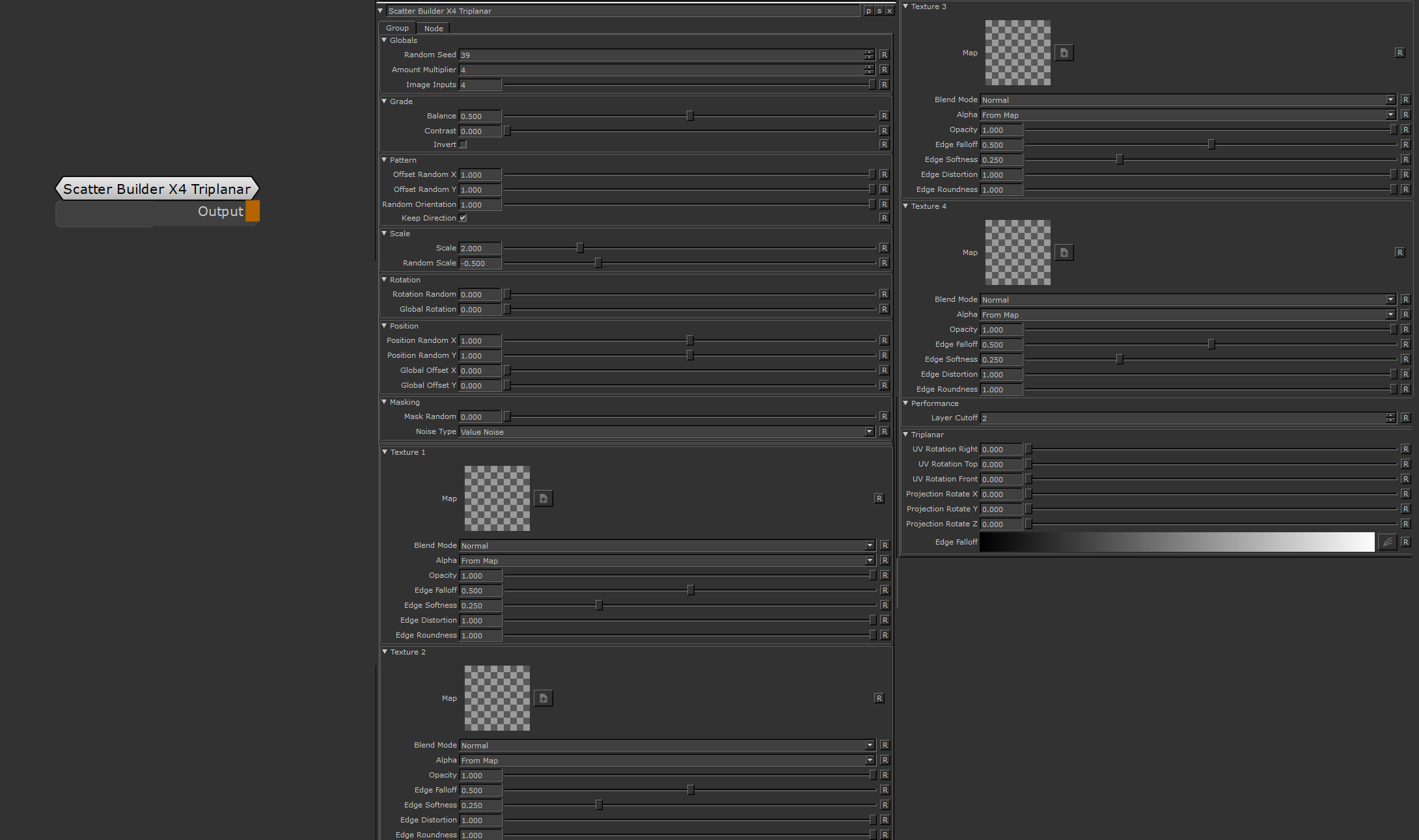

• Node Properties
• Globals
• Grade
• Pattern
• Scale
• Rotation
• Position
• Masking
• Texture
• Performance
• Triplanar

• Tips
• Seam Removal

The Scatter Builder is the main preset used for the procedural grunges found in the Procedurals Tab of the Mask Shelf.

The Scatter Builder Presets come as either

•  2D (UV Based) or Triplanar Versions
• as a single Input Version and this 4-Input Version.

By ..

• double-clicking on the Node (Mari 4.2)
• CTRL+ double-clicking on the Node (Mari 4.5 and higher)

.. you will get to its Node Properties and open the group to see the internal wiring of the node which in this case is only a Splatter Node and a Color Correction.

You can get back to your Main Nodegraph by switching back to the 'Root' Tab at the top of the Nodegraph.

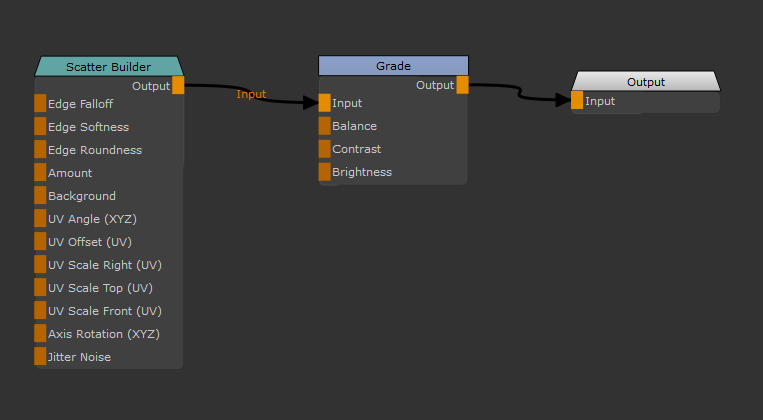

The Subgraph of the 'Scatter Builder' preset.

• Random Seed

By modifying the Random Seed, different looks can be achieved with the otherwise same settings.

• Amount Multiplier

A multiplier on the amount of Cells generated. Each cell is processed independently with the given settings (Position, Rotation etc. etc

• Image Inputs

Controls the Number if Image Inputs that are evaluated

• Balance

Shifts the Balance of the result more towards black or white.

Balance works like a level effect where the midpoint is moved towards either black or white.

• Contrast

Contrasts the Result around a Midpoint of 0.5

• Invert

Inverts the result of the Preset.

This setting is evaluated last, after Balance and Contrast have been processed

• Offset Random X

Randomly horizontally offsets the Pattern or Input Image within each cell

This is useful to have a more random look when using tileable textures

Example of randomly offsetting a tileable texture in X and Y

• Offset Random Y

Randomly vertically offsets the Pattern or Input Image within each cell

This is useful to have a more random look when using tileable textures

• Random Rotation

Applies a random rotation in 90 degree increments

• Keep Direction

If on, Random Rotation will rotate in 180 degrees to avoid changes of directions when using a texture map that has a 'directionality' (e.g. woodgrain, brushes metal etc.)

• Scale

A uniform scale factor.

• Random Scale

Mix Factor for uniform scale randomization.

Positive Values (0 - 1) will reduce the size of the cells randomly.

Positive Values (0 - 1) will increase the size of the cells randomly.

• Rotation Random

Applies a random rotation to Cells

• Global Rotation

Rotates the end result of the Pattern Generation. (globally, instead of per cell)

• Position Random X/Y

Randomly offset the Cell Positions along X and Y.

• Global Offset X/Y

Applies a global offset of the generated Pattern (all cells) along X or Y

• Mask Random

Randomly hides Cells

• Noise Type

Determines the Noise Type used for hiding cells when using Mask Random.

• Map

Supply a texture map to use in the processing.

• Blend Mode

The Blend Mode used to overlay a cell over other cells

Example of different effects achieved by changing the blend mode

• Alpha

Configure the Alpha Handling of the supplied image.

• From Map

The Transparency in your loaded texture map is used

• Alpha is Luminance

The Luminance of your loaded texture map is used as Alpha.

Black is transparent.

• Alpha is Inverted Luminance

The inverted Luminance of your loaded texture map is used as Alpha.

White is transparent.

• White

The Alpha of the loaded map is set to white resulting in the image being 100% opaque.

• Invert Map

Invert  Input Image

• Edge Controls

The Edge Controls give you control over the edge transparency of the generated pattern, allowing you to create 'Brush Effects'

• Edge Falloff

Will contract the edges of your loaded textures. This parameter can also be mapped via the Nodegraph

• Edge Softness

Will feather the edges of your loaded textures from the start of the Edge Falloff to the centre of your texture.

This parameter can also be mapped via the Nodegraph

• Edge Roundness

Switches the Falloff from Square (0.0) to Radial (1.0).

This parameter can also be mapped via the Nodegraph

• Edge Distortion

The Edge Distortion is distorting the alpha in the softened areas based on the luminance of the pattern.

If Edge Distortion is 1.0 black parts of the pattern inside the cell will be hidden in the area of Edge Softness.

If Edge Distortion is -1.0 white parts of the pattern inside the cell will be hidden in the area of Edge Softness.

Example of raising Edge Distortion from 0 to 1

• Layer Cutoff

The Layer Cutoff determines the number of iterations and radius around each cell the node runs through before it stops calculating.

If you are experiencing Seams this might be the reason

To better understand this behavior and to anticipate consider this:

• By default each cell is generated in a grid pattern at a scale of 1.
• Each cell has an internal position of 0.0 for its own coordinate system

If you change the position of a cell from its original position of 0.0/0.0 the Layer Cutoff needs to be increased

for a wider sample radius. So for example

• adding a Random Position Value of 1.0/1.0 means we need to sample up to 1 additional cell around the original cell.
• We need to increase the Layer Cutoff to at least 2

• adding a Random Position Value of 2.0/2.0 means we need to sample up to 2 additional cell around the original cell.
• We need to increase the Layer Cutoff to at least 3

If you change the scale of a cell from its original scale of 1.0  the Layer Cutoff needs to be increased

for a wider sample radius. So for example

• Changing the Scale to 2 means we need to sample 1 additional cell around the original cell.
• We need to increase the Layer Cutoff to at least 2

• Changing the Scale to 4 means we need to sample 3 additional cell around the original cell.
• We need to increase the Layer Cutoff to at least 4

• UV Rotation Right

Will rotate the UVs just along the X-Axis of the Triplanar Projection.

• UV Rotation Top

Will rotate the UVs just along the Y-Axis of the Triplanar Projection.

• UV Rotation Front

Will rotate the UVs just along the Z-Axis of the Triplanar Projection.

• Projection Rotate X/Y/Z

Will change the rotation of the Triplanar 'Projection Cube' in space.

This should not be confused with changing UV Rotation which will rotate the projected image on

each side of the projection.

Projection Rotate is useful if your asset is not perfectly aligned in the main world space axis X Y and Z

and you see projection stretching as a result of it.

Sample of rotating a projection in 3d space. While this example is using

 an Axis Projection Node the concept is the same for the Texture Scatter Triplanar Node

• Edge Falloff

The Edge Falloff Curve determines the general Falloff of each projection axis to its sides.

This is similar to adjusting the Edge Falloff Start and Edge Falloff End Sliders however

it allows you to create non-linear edge blending

If you are seeing seams in your pattern try raising the Layer Cutoff
