RemapFloat (AL) |
- Where to find it:
- Add Adjustment Layer / Extension Pack / Histogram /
NodeGraph / Right Mouse Click / Nodes / Filter / Extension Pack / Histogram /
The alRemapFloat Node is a powerful Value Remapping Node, giving same results as alRemapFloat Node for Arnold (part of alShaders by Anders Langlands).

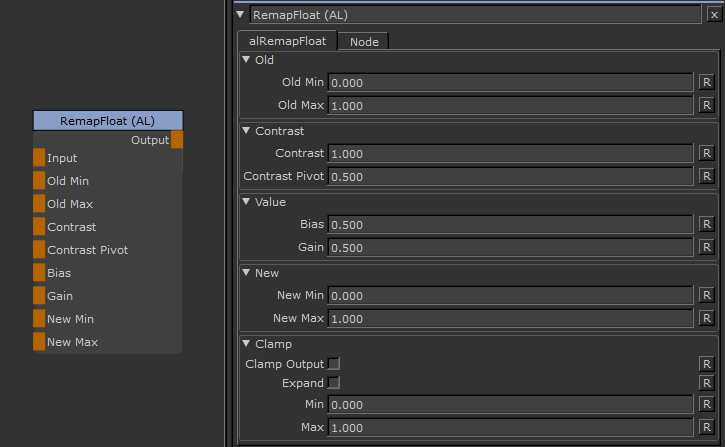

- Input
Supplies the map you want to adjust
- OldMin
The value that is defined as Minimum Value on the Input. For example on a gradient black to white, when increasing the OldMin
any incoming Value below OldMin will become black. If this port is mapped the corresponding value in the Node Properties will no longer be evaluated
- OldMax
The value that is defined as Maximum Value on the Input Color. For example on a gradient black to white, when decreasing OldMax
any incoming Value above OldMax will become white.If this port is mapped the corresponding value in the Node Properties will no longer be evaluated
- Contrast
A value to adjust the Contrast.
If this port is mapped the corresponding value in the Node Properties will no longer be evaluated
- Contrast Pivot
The Pivot Point for Contrasting. Larger values than the pivot will get 'crunched' towards white, lower values towards black
If this port is mapped the corresponding value in the Node Properties will no longer be evaluated
- Bias
Bias the Input higher or lower. Values less than 0.5 push the average lower, values higher than 0.5 push it higher.
If this port is mapped the corresponding value in the Node Properties will no longer be evaluated
- Gain
Adds gain to the Input, in effect a different form of contrast. Values less than 0.5 increase the gain, values greater than 0.5 decrease it.
If this port is mapped the corresponding value in the Node Properties will no longer be evaluated
- New Min
The value that is defined as Minimum Value on the resulting Output. For example on a gradient black to white, when increasing NewMin
the previously black areas will be the value set in NewMin.
If this port is mapped the corresponding value in the Node Properties will no longer be evaluated
- New Max
The value that is defined as Maximum Value on the resulting Output. For example on a gradient black to white, when decreasing NewMax
the previously white areas will be the value set in NewMax.
If this port is mapped the corresponding value in the Node Properties will no longer be evaluated
MAIN TAB
- OldMin
The value that is defined as Minimum Value on the Input. For example on a gradient black to white, when increasing the OldMin
any incoming Value below OldMin will become black.
- OldMax
The value that is defined as Maximum Value on the Input Color. For example on a gradient black to white, when decreasing OldMax
any incoming Value above OldMax will become white
- Contrast
A value to adjust the Contrast.
- Contrast Pivot
The Pivot Point for Contrasting. Larger values than the pivot will get 'crunched' towards white, lower values towards black
- Bias
Bias the Input higher or lower. Values less than 0.5 push the average lower, values higher than 0.5 push it higher.
- Gain
Adds gain to the Input, in effect a different form of contrast. Values less than 0.5 increase the gain, values greater than 0.5 decrease it.
- New Min
The value that is defined as Minimum Value on the resulting Output. For example on a gradient black to white, when increasing NewMin
the previously black areas will be the value set in NewMin.
- New Max
The value that is defined as Maximum Value on the resulting Output. For example on a gradient black to white, when decreasing NewMax
the previously white areas will be the value set in NewMax.
- Clamp Output
When checked, the Output of the Node will be clamped to Min and Max
- Expand
When enabled, it will expand the clamped range back to 0-1 after clamping.
- Min
The Minimum Clamp Value
- Max
The Maximum Clamp Value
