Hotbox Type : Radial (Maximum 8 Buttons) |
Two separate examples of Radial Hotboxes. Radial Hotboxes allow for a maximum of 8 Buttons plus Center Button
Radial Hotboxes come with a set of specific options on top of the general behavior and preset options
Position |
The Position Section affects the automatic distribution of buttons

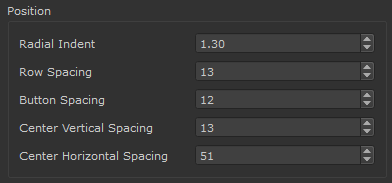

Available Position Settings for Radial Menu

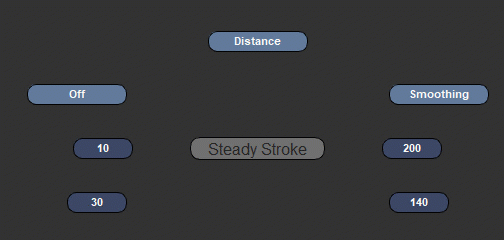

- Radial Indent
The Radial Indent determines the space between buttons on the first row in the Top and Bottom Section of the Menu
- Row Spacing
Row Spacing determines the vertical space between rows

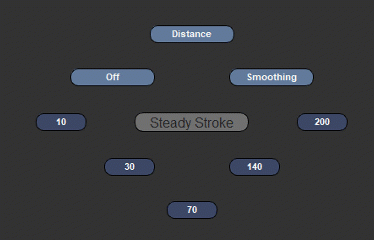

Example of increasing the row spacing
- Button Spacing
Button Spacing determines the horizontal space between buttons in the first top and bottom row

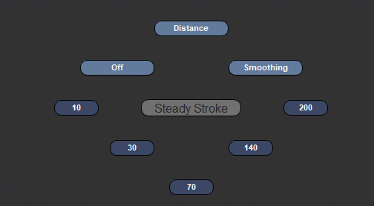

Example of increasing the button spacing
- Center Vertical Spacing
Center Vertical Spacing determines the space between the center and top section and the center and bottom section

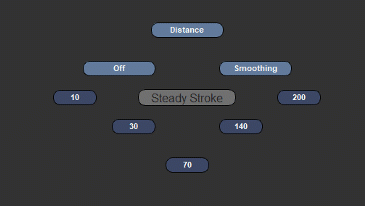

Example of increasing the Center Vertical Spacing
- Center Horizontal Spacing
Center Horizontal Spacing determines the space between the hotbox center and buttons in the center section to the left and right of the hotbox center

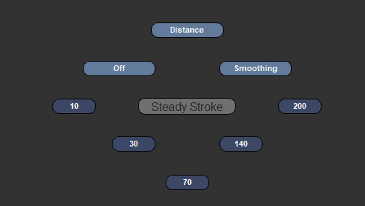

Example of increasing the Center Horizontal Spacing
Style |
The Style Section affects the general look of the buttons.
Styles can be overwritten per Button in the Button Settings |
Available Style Settings
- Font
Determines the font used for buttons
- Font Size
Determines the font size used for buttons
- Bold Text
Sets the Font used for Buttons to use bold lettering
- Show Center
Determines the visibility of the Center Identifier Button of a Hotbox
- Center Color
Determines the background color of the Center Identifier Button of a Hotbox
- Button Color
Determines the background color of buttons and slider color for sliders
This setting can be overridden per button in the Button Settings |
- Submenu Color
Determines the background color of buttons that open a submenu
- Center Text Color
Determines the Font Color of the Center Button
- Button Text Color
Determines the Font Color of the Center Button
This setting can be overridden per button in the Button Settings |
- Center Border Color
Determines the Color of the Center Button Border
- Button Border Color
Determines the Color of the Button Border
This setting can be overridden per button in the Button Settings |
- Highlight Color Scheme
Determines the Mouse-Over Highlight Color of a Button
- MARI HIGHLIGHT COLOR SCHEME
- MAYA HIGHLIGHT COLOR SCHEME
- CUSTOM HIGHLIGHT COLOR SCHEME
- Center Height
Determines the Height of the center button
- Center Width
Determines the width of the center button
- Center Roundness
Determines the Corner Radius of the Center Button
The maximum corner radius is determined by the Center Width and Height |
- Button Height
Determines the Height of buttons
This setting can be overridden per button in the Button Settings |
- Button Width
Determines the width of buttons
This setting can be overridden per button in the Button Settings |
- Button Roundness
Determines the Corner Radius of Buttons
The maximum corner radius is determined by the Button Width and Height |
This setting can be overridden per button in the Button Settings |
Backdrop |
The Backdrop allows you to define a background plane for your Menu to improve readability and visibility
Example of a number of Buttons placed inside a black backdrop
Available Backdrop Settings
- Show Backdrop
Determines if a Backdrop is drawn
- Width
Sets the horizontal size of the Backdrop
- Height
Sets the vertical size of the Backdrop
- Offset X / Y
Positions the Backdrop
- Roundness
Determines the Corner Radius of the Backdrop
The maximum corner radius is determined by the Backdrop Width and Height |
- Opacity
Determines the Opacity of the Backdrop
- Color
Determines the Color of the Backdrop
PREVIOUS PAGE: Row Based Hotbox Types
