The Button Settings Tab displays the settings of a selected Button.

It allows you to

• define the type of action executed, if the button is clicked (Mari Action, Script etc.)
• change the button type (button, line, slider, checkbox etc.)
• change the button section (Top, Bottom, Center)
• change the button position within a section
• overwrite the visual style of a button

The Status Section displays information about the State and Functionality of the selected Button.

Detailed information is displayed in Tooltips to aid in identifying problems and conflicts

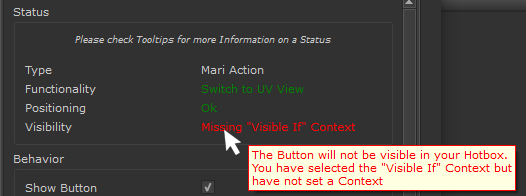

Example of a tooltip displaying information about the Status of a Button

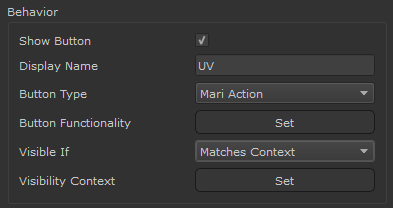

The Behavior Section allows you to configure the type of button, button functionality to be executed and its visibility

• Show Button

Makes the Button visible in the current Menu

• Display Name

The Text displayed on the Button or on the Button Tooltip (if Button is an Icon)

• Button Type

The Type of Functionality mapped to the current Button.

• Mari Action

Launch a Mari action when the Button is executed.

A Mari Action is any command accessible within in Mari that is also available in Mari's Hotkey Editor.

The action to launch is set under Button Functionality

• Python Code

Launch Python Code when the Button is executed.

The Python Code to launch is set under Button Functionality

• Image Load

Load an Image into the Image Manager and set it as a Paint Through Image.

The Image Path to load is set under Button Functionality

• Submenu

Open a Submenu Hotbox when the button is executed.

The Submenu link can be defined  under Button Functionality

Example of a Submenu attached to a Button

• Slider

Instead of a button display a slider. A hotbox slider can be linked to a slider in the Mari interface.

The  Functionality of the Slider can be defined  under Button Functionality

Example of a Hotbox Slider

• Checkbox

Instead of a button display a checkbox. A hotbox checkbox can be linked to a checkbox  in the Mari interface.

The  Functionality of the Checkbox can be defined  under Button Functionality

Example of an unchecked & checked

Checkbox in a Hotbox

• Spacer (100% , 50%, 25%)

Display an empty space instead of a button.

The width of the empty space is 100%, 50% or 25% of the Button Size defined in the Style Section of the Hotbox Settings

• Spacer (Custom)

Display an empty space instead of a button.

The width  of the empty space can be defined in the Custom Style Section of the Button

• Vertical Line

Displays a vertical Line instead of a button.

This is useful to add a visual separator in your Hotbox.

• Horizontal Line

Displays a horizontal Line instead of a button.

This is useful to add a visual separator in your Hotbox.

• Button Functionality

Allows you to set the Functionality such as which Mari Action to execute, what Python Code to launch etc.

For more information please refer to the Setting Button Functionality section of this help

• Visible If

Visible If allows you to build Hotboxes that change dynamically based on context.

Currently you can show/hide elements of a hotbox based on selected Tools or selected node types in the Nodegraph.

• Always

The Button is always visible unless other visibility conditions (hidden by user, conflict etc.) prevent visibility.

• Matches Context

The Button is only shown if the Context defined under Visibility Context matches

• Visibility Context

Allows you to set the Context in which the Button is visible.

For more information please refer to the Context Sensitive Buttons section of this help

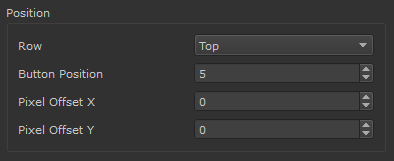

The Position Group contains settings to control the placement of the current button within the Hotbox

• Row

Set the Section (Top, Center, Bottom) of the Hotbox, the Button belongs to

• Button Position

The Button Position is a unique index for each button determining the order of buttons.

The numbers don't need to be incremental e.g a numbering of buttons 1,2,4,8,12 is totally acceptable.

Each Button in a Hotbox should have a unique number.

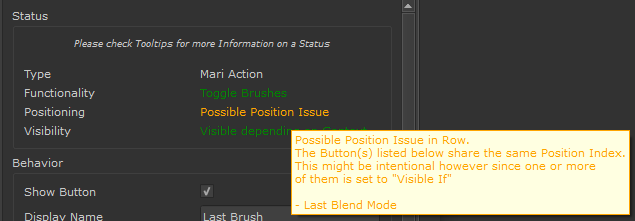

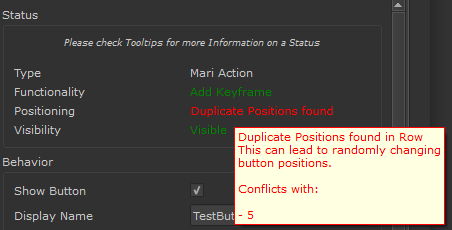

Conflicts in Button Positions are displayed in the Status Section with additional information displayed in the tooltip

• Pixel Offset X/Y

Allows you to offset the Position of the Button within the Hotbox.

Pixel Offset Options are only visible if any of the below conditions are met

• The Hotbox is a Dial Hotbox
• The Button Type is a Slider or Checkbox

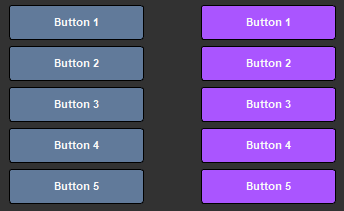

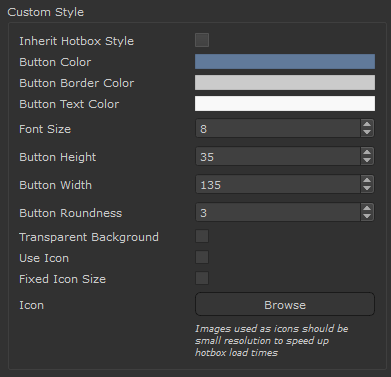

The Custom Style Group offers options to overwrite the style of a specific button so it is different than the style defined in the Hotbox Settings

• Inherit Hotbox Style

If on, the Button has the look and feel defined in the Hotbox Settings

If off, the Button takes its style queues from the Options below.

• Button Color

Determines the background color of buttons and slider color for sliders

• Active Range / Inactive Range

If the Button Type is a Slider , new options become visible to set the color of the active and inactive range

of the slider

• Button Text Color

Determines the Font Color of the Center Button

• Button Border Color

Determines the Color of the Button Border.

For Button Type Checkbox this determines the color of the Checkbox

• Button Height

Determines the Height of button

• Button Width

Determines the width of the button

• Button Roundness

Determines the Corner Radius of the button

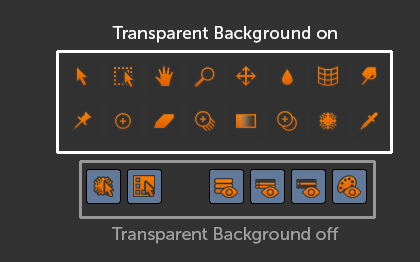

• Transparent Background

The Transparent Background Setting determines if a background is drawn behind the Button Text or Button Icon

• Use Icon

If on, the supplied Icon will be shown instead of the Display Name.

If an icon is drawn and Show Tooltips on Icons is turned on in the Hotbox Settings, the Display Name of the Button is shown

as a tooltip when the mouse is hovering above the button

• Fixed Icon Size

If on, the original icon size (resolution of supplied image) is used to draw the icon.

If off, the supplied image is rescaled to fill the Button Width and Height

• Icon

Select an Image from Disc to display as an Icon if Use Icon is turned on.

While Icon paths are defined as an absolute path, the Hotbox Systems has several methods to locate an icon even

if the file path on disc has changed:

• If the file path on disc no longer exists but a file with the name exists in the current Hotbox Folder, this file is used instead.

• If an icon is picked from the Mari Installation Folder (e.g C:\Program Files\Mari4.5v1\Bundle\Media\Icons) the path

is automatically converted to a Mari Icon Path, meaning it will always be found regardless

• If an icon is picked from the Extension Pack Installation Folder  the path

is automatically converted to a Extension Pack Icon Path, meaning it will always be found regardless

---
