• Where to find it:

• Add Adjustment Layer / Extension Pack / Color Correction /

• NodeGraph / Right Mouse Click / Nodes / Filter / Extension Pack / Color Correction /

---

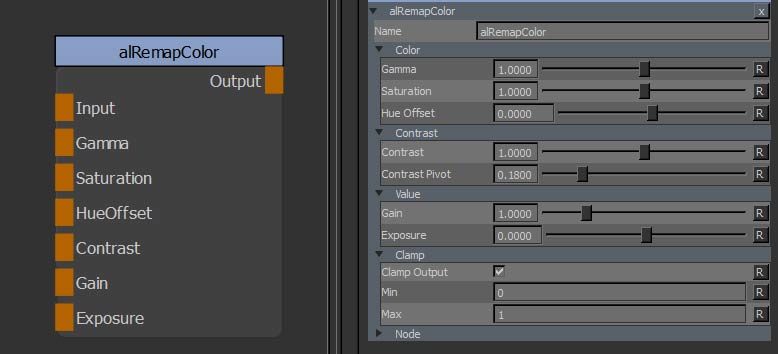

• Node Overview
• Node Ports

• Node Properties
• Color
• Contrast
• Value
• Clamp

The alRemapColor Node is a powerful Color Correction Node, giving same results as alRemapColor Node for Arnold (part of alShaders by Anders Langlands).

Please note other than alRemapColor Node inside alShaders this Mari implementation has additional Clamping functionality.

• Input

Supplies the map you want to adjust

• Gamma

A Value for Gamma Correction. 1.0 is no change to the Input.

If this port is mapped the corresponding value in the Node Properties will no longer be evaluated

• Saturation

A value for Saturation. 1.0 is no change to the Input.

If this port is mapped the corresponding value in the Node Properties will no longer be evaluated

• HueOffset

An offset value for the Hue., ranging from -180 to +180. 0 means no change

If this port is mapped the corresponding value in the Node Properties will no longer be evaluated

• Contrast

A value to adjust the Contrast.

If this port is mapped the corresponding value in the Node Properties will no longer be evaluated

• Gain

Adds gain to the signal, in effect a different form of contrast. Values less than 0.5 increase the gain, values greater than 0.5 decrease it.

If this port is mapped the corresponding value in the Node Properties will no longer be evaluated

• Exposure

A value to adjust the Exposure.

If this port is mapped the corresponding value in the Node Properties will no longer be evaluated

Please note other than the Extension Pack Exposure Adjustment Node in alRemapColor a Exposure

Value of 0 is equal to no change in order to be compatible with alShaders

• Gamma

A Value for Gamma Correction. 1.0 is no change to the Input.

• Saturation

An  value for Saturation. 1.0 is no change to the Input.

• Hue Offset

An offset value for the Hue., ranging from -180 to +180. 0 means no change

• Contrast

A value to adjust the Contrast.

• Contrast Pivot

The Pivot Point for Contrasting. Larger values than the pivot wil get 'crunched' towards white, lower values towards black

• Gain

A gain value on the input texture

• Exposure

A value to adjust the Exposure.

Please note other than the Extension Pack Exposure Adjustment Node in alRemapColor a Exposure

Value of 0 is equal to no change in order to be compatible with alShaders

• Clamp Output

When checked, the Output of the Node will be clamped to Min and Max

• Min

The Minimum Clamp Value

• Max

The Maximum Clamp Value
