• Where to find it:

• NodeGraph / Right Mouse Click / Add Nodes / Environment / Extension Pack /

• Video

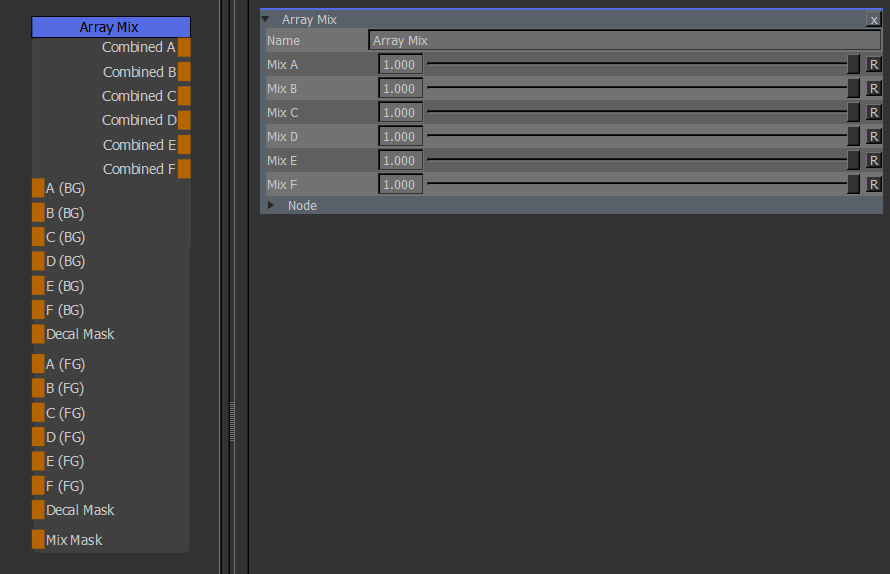

• Node Overview
• Node Ports
• Node Properties

The Array Mix Node allows you to mix the Outputs from two different Array Nodes.

It therefore can act like a Merge Node for an entire Material

• A-F (BG)

Ports for the Outputs of the first Array Node

• Decal Mask (BG)

The Decal Mask will acts as an Alpha for all BG Images passing through the Array Mix Node

• A-F (FG)

Ports for the Outputs of the second Array Node which will sit over the first one

• Decal Mask (FG)

The Decal Mask will acts as an Alpha for all FG Images passing through the Array Mix Node

• Mix Mask

The Mask for combining the FG Ports with the BG Ports

• OUTPUT A-F

The combined Output from each BG + FG Port.

• Mix A-F

The Mix Sliders act like an Opacity for the FG Connections in the Nodegraph.

When no Mix Mask is attached in the Nodegraph the FG Ports will completely overlay

the BG Ports.

When a Mix Mask is attached in the Nodegraph the Sliders act like Multipliers on the Mask.
