• Where to find it:

• Add Procedural Layer / Environment / Extension Pack /

• NodeGraph / Right Mouse Click / Add Nodes / Environment / Extension Pack /

• Options
• Node Properties
• General
• Color
• Axis
• Offset along Axis

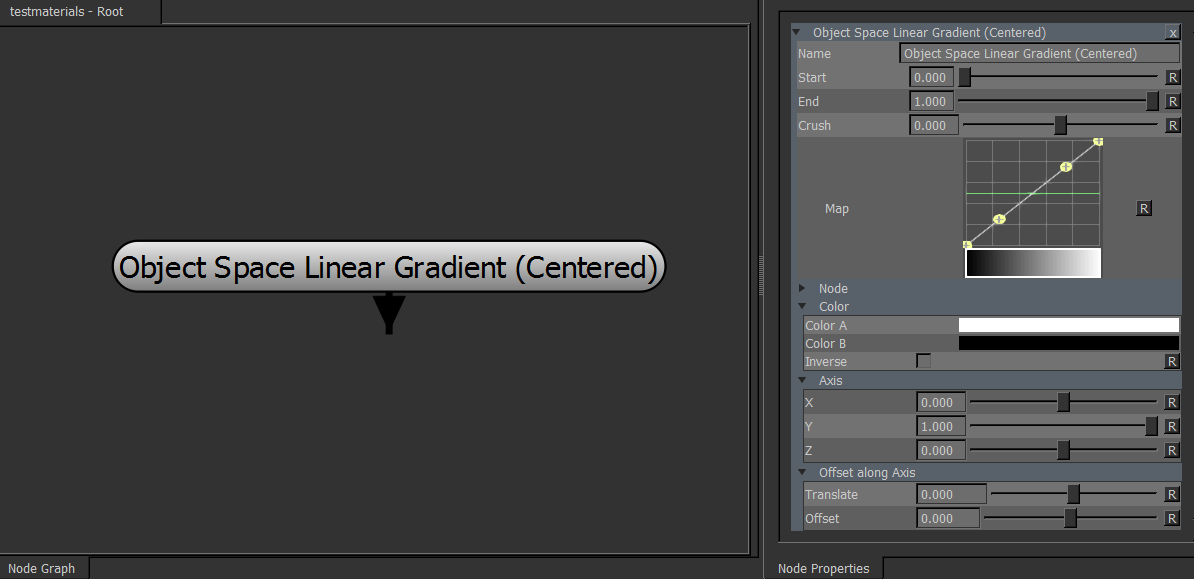

The Object Space Linear Gradient (centered) will create a gradient along a defined axis.

It is an improved Version of Mari's Default Object Space Linear Gradient allowing for better and easier

setup of the gradient.

• Start

By default the gradient will be generated at the size of your objects bounding box.

The Start Parameter allows you to shift the Color A more towards the centre of the bounding box

• End

By default the gradient will be generated at the size of your objects bounding box.

The Start Parameter allows you to shift the Color B more towards the centre of the bounding box

• Crash

By default the gradient will be generated at the size of your objects bounding box.

The Crush Parameter allows you to shift simultaneously move the Start and End point of the Gradient

towards the centre of the object

• Map

The Curve Map allows you a change the profile of the gradient

• Color A/B

Colors for the Gradient (A to B)

• Inverse

Flips the distribution of the color from B to A

• X / Y / Z

The axis sliders allow you define a axis in which the gradient should be generated.

By default the gradient will be generated from world top to world bottom (y=1)

• Translate

The Translate slider allows you to move the centre of the gradient along the Axis defined with the Axis Sliders

• Offset

The Offset slider allows you to move the centre of the gradient along the Axis defined with the Axis Sliders.

The Offset slider is essentially the same as the Translate slider but with a different slider range, allowing for finer

control

Please note in any Mari Slider field you can expand the range of the slider by typing a value outside the slider range

into the numerical field.
