Input Switch

• Where to find it: (This Node is available in the Nodegraph only)

• NodeGraph / Right Mouse Click / Add Nodes / Layer / Extension Pack /

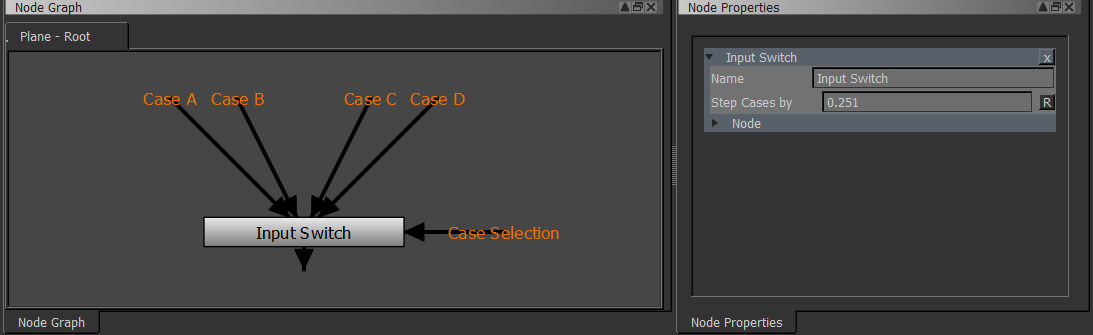

• Options

• Node Connections

• Node Properties

The Input Switch will switch between 4 Inputs based on a step value provided by the 'Case Selection' Connection

• Case A - D

The different Inputs the Node will cycle through

• Case Selection

Provides the Value that is used to determine which Case (A,B,C or D) to output from the Node.

If nothing is attached to this connection Case A is used.

• Step Cases by

The Value Range between each Case.

By default a value of 0.25 is used meaning that on a Value range of 0-1 fed in via the Case Selection Connection

the node will output

• Case A for 0-0.25
• Case B for 0.25 - 0.5
• Case C for 0.5 -0.75
• Case D for 0.75 - 1.0
