Illegal Value Warning

• Where to find it:

• Add Adjustment Layer / Extension Pack / Utils /

• NodeGraph / Right Mouse Click / Nodes / Filter / Extension Pack / Utils /

• Options
• Color
• Upper / Lower Bound
• Blink Settings

Sometimes it is important to work in a fixed value range.

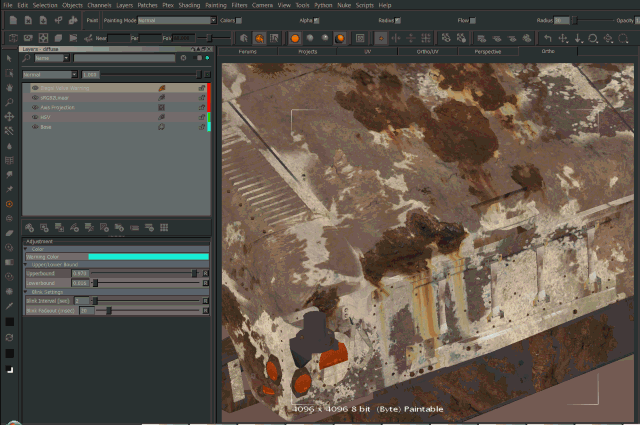

Illegal Value Warning gives you a visual warning for color values outside a defined min/max range similar to what some

more professional monitors offer.

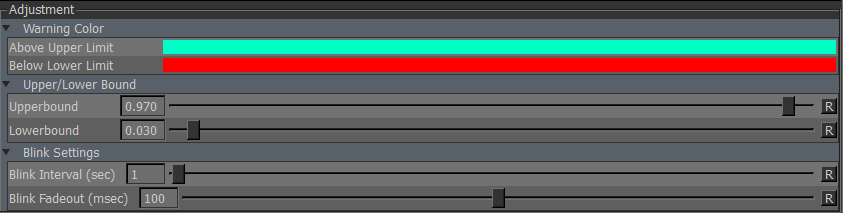

• Above Upper Limit

The color the warning is displayed in for values over the 'Upper Bound'

• Below Lower Limit

The color the warning is displayed in for values below the 'Lower Bound'

• Upper Bound

The maximum color value before a warning is triggered

• Lower Bound

The minimum color value before a warning is triggered

• Blink Interval (seconds)

The number of settings between each color flash. Set to 0.0 to have a constant, non-blinking warning color overlayed.

• Blink Fadeout (milliseconds)

The number of milliseconds the color flash fades out. Set to 0.0 for just a on / off switch
