IOR to Specular Level (dielectric)


  • Where to find it:


    • Add Adjustment Layer / Extension Pack / Specular /


    • NodeGraph / Right Mouse Click / Nodes / Filter / Extension Pack / Specular /






IOR to Specular Level (dielectric) will convert IOR Values of dielectric materials (non-metal) to a Specular Level Value.


Specular Level Maps are popular in a game-PBR workflow and are found for example in Unreal Engine, can be output from Substance Products etc..

You can also utilize Specular Levels in the Mari UNREAL and Extension Pack UNREAL Advanced Shader (just called 'Specular')


They define the reflectance of dielectric (non-metal) materials from 0 % (0.00) to 8 % (0.08) via a remapped value of 0 to 1.

In most cases these Specular Levels are set to 0.5 which in Reflectance terms is a 0.04 surface reflectance or IOR 1.5 equaling plastic.


Some sample measured Specular Level Values can be found below (taken from UNREAL Engine Documentation)


Material        Specular Level

Glass       0.5

Plastic      0.5

Quartz      0.570

Ice           0.224

Water       0.255

Milk          0.277

Skin          0.35


Video

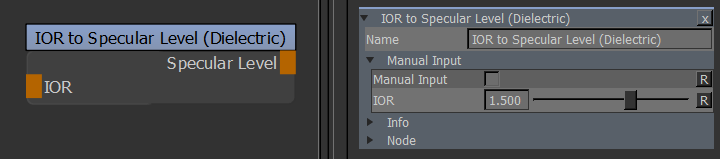

Node Overview


Node Ports


  • IOR

When the Manual Input option of the node is disabled you can feed in values from other layers or nodes

that will then be converted.


Node Properties


MAIN TAB

Manual Input


  • Manual Input

When ticked, the Node will no longer act as an adjustment layer, converting values fed in from other nodes

or layers. Instead it will output the converted value from the IOR Value entered via the Slider.


  • Reflectance Value

The IOR Value to convert when Manual Input is enabled
