Released by Jens Kafitz, 2019 - http://www.MariExtensionPack.org

• DOWNLOAD ONLINE HELP

---

 RELEASE: 23 October 2019

MINIMUM REQUIREMENT:  MARI 4.1v2

RECOMMENDED:  MARI 4.5v1 or higher



---

• New Features
• Feature Improvements
• Bugfixes
• Deployment Updates
• Developer Updates
• Credits

ICONLEGEND

= New Feature

= Feature Update

= Feature available in Nodegraph only

= Tutorial available, click to view

Extension Pack 5 brings fully customizable Marking Menus and Hotboxes to MARI.

Artwork courtesy of Paul. H. Paulino and David Letondor

• DEFAULT MARKING MENUS

A number of standard Marking Menus ship with the default installation:

• FULLY CUSTOMIZABLE VIA HOTBOX MANAGER

Create new Hotboxes easily from many examples or adjust existing ones to your liking with detailed customization options.

Of course all of these can be easily saved and shared with other team members.

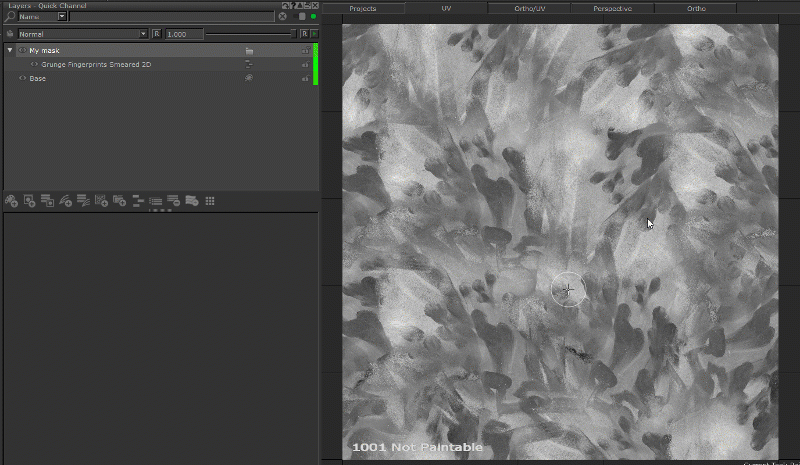

A new Mask Shelf has been added to Mari, the core location for many new features found in Extension Pack.

Mask Shelfs are available for the Layerstack and Nodegraph, each Mode showing some slightly different options to interact with presets

With the new Mask Shelf you can easily:

• Save any Layer, Layer Group or Node Selection as a preset. Image data is automatically embedded.

• Share Shelves with Presets across a team of artists

• Automatically setup Shelfs for your Artists via Environment Variables

• Filter and Group Content

Smart Masks - part of the Mask Shelf System - are a system to procedurally create wear and tear for your Object by utilizing the objects curvature,ambient occlusion, thickness etc.

• AUTOMATIC SETUP

Imported Presets are automatically set up for you. The first time you use any preset in your project, Mari will create some data for you.

The second time any preset is used, setup is instant.

• CHOOSE FROM A NUMBER OF PRESETS OR CREATE YOUR OWN

Extension Pack comes with a number of pre configured Edge Wear Presets. In addition powerful Mask Builder Tools allow you to create your own.

• NEW SAMPLE PROJECT

To quickly test out some of the new Edge Wear Presets, a new Example Project has been added under the Help Menu.

Extension Pack 5 introduces a powerful pattern generator engine , allowing you to create complex patterns, scattered and

procedural textures at a level not possible before inside of MARI.

• HUNDREDS OF PRESETS

Hundreds of Presets utilizing the Pattern Engine have been added to the 'Procedural' Tab of the new Mask Shelf .

• Procedural Grunges allow you to create completely random grunges

• Procedural Patterns allow you to create customizable patterns

• PATTERN GENERATOR NODES

To help you with your Pattern Creation, Extension Pack 5 introduces a number of powerful new Pattern and Shape nodes.

All Nodes are available as UV Based or 3D Triplanar Versions.

• Shape

Generate a wide variety of standard shapes easily

• Pattern Generator X1, Pattern Generator X4

The heart of the Pattern Engine, the Pattern Generators allow you to create infinite pattern variations either

with one base input or up to 4.

• Symmetry Pattern Generator X1

Modifications of the Pattern Generator Nodes, these nodes are specifically designed for

symmetrical or geometric patterns

• Splatter X1, Splatter X4

Designed for creating random patterns, Splatter nodes allow Texture Bombing with up to 4 Texture Inputs

• Shape Splatter

Similar to the Texture Splatter Nodes above, this Splatter Variations allows splattering with procedural shapes instead

of texture maps

• Value Adjust (Balance, Contrast, Brightness)

The Value Adjust Adjustment allows tweaking of Balance, Contrast and Brightness of underlying Textures

• Gradient from Image

Given an Input texture to sample from, a remap gradient is generated containing the colors of the supplied image.

• Fibers / Fibers Triplanar

Create high detail fiber textures to give your cloth and fur textures additional details

• Noise Selector

A useful Noise Selector to quickly switch between different noise types.

Especially handy if exposed as Node Attributes for your Materials and Groups.

• Triplanar Pattern Nodes

Triplanar Versions of the following existing Nodes have been added

• Checker
• Dots
• Stripes
• Super Ellipse
• Weave

• Circular Gradient

A new circular Gradient Procedural has been added



• Float-3

The Float-3 Node allows you to set separate R, G and B Values per Channel with a variety of different UI controls.

Ideal to expose Values for a Material or Group

• Input Switch X11

Similar to the existing 'Input Switch X4', the 'Input Switch X11' allows switching between different inputs using a

numerical value specified in the Node or fed in via a Node port.

The 'Input Switch X11' Node supports up to 11 Inputs.

Example of an Input Switch Node with 'Stepping' of 1 controlled by a Float Node.

New Blend Mode have been integrated into Mari:

• Add / Sub

Example of Add/Sub Blend Mode

This Blendmode works computationally the same as the Add | Sub Blend Mode found in the Substance Suite

• Add / Sub Halve

Example of Add/Sub Halve Blend Mode

This Blendmode works similar to an Overlay, however a value of 0.5 is subtracted first before adding together.

Compared to the Add|Sub Blendmode, Add|Sub Halve favors the Background Texture and generally builds up less

contrast, making it more suitable for chained blending effects

• Subtract

A simple value subtraction without clamping the result

A  new default Object type can now be added via the Object Palette

• Material Ball

New Options have been added to the Layerstack and Nodegraph Menus to copy and paste Attributes between Layers or Nodes.

• Copy/Paste Layer Attributes

•  Copy/Paste Node Attributes

Example of Copy and Pasting Attributes from one Layer to another.

Separate Options for Nodegraph Users are accessible from the Nodegraph Right Mouse Click Menu

You can now swap out a Procedural Type via the Layerstack and Nodegraph.

• Swap Layer Type
• Swap Node Type

Swapping a Procedural Type will replace the currently selected Procedural with a different target while

transferring any attributes that match between the different procedurals.

This can for example be used to quickly convert a 2D Tiled Texture to a Triplanar.

Example of converting a 'Tiled' Layer into an 'Axis Projection'

Tired of messy Image Managers, not knowing which Images are used in your Project ?

Extension Pack 5 introduces the 'Remove Unused Images'   Option.

All Images not used in your Project in Nodes and/or Layers are automatically removed



While Mari ships with a number of tools to automatically update Bake Points that are empty or out of date, these tools only work

within the currently active Nodegraph. They do not update Bake Points that live inside of Subgraphs (Graph Groups, Materials).

With the new 'Smart Bake Hierarchy'  Option, all upstream Bake Points are automatically updated. Regardless if they exist in the current node graph or are part of a subgraph

• A large number of Math and OpenGl Functions has been added as Nodes (totaling 56 Nodes).

This allows for complex 'visual coding' in the Nodegraph. Refer to the Math Nodes for a full list of available nodes



• You can now toggle between the last used shaders using the Shading / 'Select Last Shader' Option

• You can now assign a Hotkey to toggle Steady Stroke on and off

• You can now assign a Hotkey to a Viewport Tab (Ortho, UV, Perspective etc.)

• You can now assign a single Hotkey to create either a Merge or Multi-Channel Merge Node depending on selected node ('Smart Merge')

• You can now select custom Nodes (Non-Standard Mari Nodes such as Nodes from Extension Pack) in your Nodegraph

• Add Default Object will now add the new geo as an object version  by default if launched via right mouse clicking on an existing object

• You can now switch the visual appearance of the Tools Toolbar to have a different grouping or be ungrouped

Several Tools have been enhanced to support Mari 4.5's MultiOutput Support for Nodes.

• The following Tools now maintain connections to non-default Outputs

• Channels / Duplicate Channel
• Layerstack / Copy-Paste with shared Connections

• Nodegraph / Duplicate with Connections
• Nodegraph / Swap Node Type
• Nodegraph / Toggle Radio Nodes



• The following Tools now show additional Information about Outputs:

• Nodegraph / Jump to Node Output

• Export Custom Channel Selection

• When 'Export Modified UDIMs' is ticked on in the Channel Exporter, the Export Report now list which UDIMs were exported in its export report

• Convert to Paintable

• Convert to Paintable now supports Graph Layers

• Material ID from Selection Sets

Material ID from Selection Sets  has been refactored for improved User Experience when assigning ID Colors manually

• Colors can now be assigned in both list views

• Colors can now be sampled from selection sets to assign to other selection sets

• Last used colors are now displayed and can be used to quickly assign colors to other sets

• A number of standard colors are now visible, allowing you to quickly assign colors without having to set a color via the color picker

• You can now see which sets have which color assigned and you can select sets based on color

• The Filtering field now supports Operators such as 'or' (,) and 'and' (+)

• You can now filter the list views based on color

• UNREAL Advanced

• The PBR Value Check has been disabled by default. It can be reactivated in the shader at any time

• Improved Rendering of Surfaces pointing away from the Light

• Mask from Curvature



• The Mask from Curvature Node has been rewritten completely.

• Additional controls over blending,remapping and jittering are now available in the Advanced Options Tab

• Attribute Names have been reworked to be more explanatory

• Additional controls over final grading (Contrast,Bias,Gain) have been added

• Axis Projection

• A new 'Background Color' Option has been added

• Transition between different directions is now slightly smoother

• Added a Blend Intensity Slider to control the Alpha Strength of the Projection

• UV Rotation per Axis is now consistently named according to the Mari Triplanar vocabulary of 'Front, Right, Top'

• Axis Mask

• New 'Offset' Options have been added, allowing you to shift your mask along an axis

• Texture Scatter Triplanar

• The Texture Scatter Triplanar Node now has the same Input Ports as the Axis Projection Node



• UV Rotation per Axis is now named according to the Mari Triplanar vocabulary of 'Front, Right, Top'

• The Texture Scatter Triplanar Node now has the same Jitter Options as the Axis Projection Node

• Renamed 'Base Color' to 'Background Color'

• Texture Scatter 2D X1 / X4

• Renamed 'Base Color' to 'Background Color'

• Squid Skin

• Added the ability to specify a Background Color

• Material Regions



• Nodegraph Material Regions have been retired from Extension Pack since Mari 4.5

introduces its own Material System. Old Projects using Material Regions will still load with them intact

A number of updates have been made to improve existing Math Nodes.

 All these changes are available in the 56 new Math and Opengl Nodes as well

• Math Nodes are now prefixed with 'gl_'

• Math Nodes now generally have 5 Outputs

• OUTPUT

Separate computation for Input Red, Green, Blue and Allpha Channel

• R

Computation for Input Red channel only, saved into R, G and B channel with an Alpha of 1.0

• G

Computation for Input Green channel only, saved into R, G and B channel with an Alpha of 1.0

• B

Computation for Input Blue channel only, saved into R, G and B channel with an Alpha of 1.0

• A

Computation for Input Alpha channel only, saved into R, G and B channel with an Alpha of 1.0

The Node Categories have been reorganized. Several Nodes have moved:

• 'Environment' Subcategory has been removed

• The following Nodes have been moved to a new 'Generators' Category under /Procedurals/ExtensionPack/

• Axis Projection
• Cylindrical Projection
• Directional Gradient
• Image
• Object Space Radial Gradient
• Texture Scatter 2D X1
• Texture Scatter 2D X4
• Texture Scatter Triplanar X1

• The following Nodes have been moved to the 'Layering Nodes' Category

• Condition

• The following Nodes have been moved to the 'Noises' Category under /Procedurals/ExtensionPack/

• Turbulence (Extended)

• The following Nodes have been moved to a new 'Workflow Conversion' Category

• PBR MetalRough to SpecGloss
• PBR MetalRough to ReflectanceRoughness

The Mari 'Material Ingest' Tool now recognizes Extension Pack Nodes.

 If the supplied Material Template contains Extension Pack Nodes, the Nodes will be auto-filled with the imported Material Image Files.

Tool Loading and Mari Startup Times have been improved by removing legacy version code

• Extension Pack Splash Screen was showing in Headless Mode

• Mari would crash when the Text Generator was launched, while the Mari Default Image Folder (editable via the Project Path Tool ) was

pointing to a directory without Write Permissions. If this issue is detected a dialog will now prompt the user to specify a writable folder.

• Export Custom Channel Selection would hang and fail when exporting lower resolution (half, quarter etc.) channels, when the current

geometry version had less UDIMs than a previously deleted geometry version

• Clone & Merge would fail and error when run on selected patches, whenever an Image was missing in a layer

• Several Extension Pack Nodegraph Tools did not work inside of Graph Groups and Materials if the Nodegraph had been maximized using SPACE bar

• Multi Rename Nodes did not rename nodes inside of Graph Groups, even when the Option was ticked on

• Material ID from Selection Groups only created a material ID Channel on the first geometry if selection groups from multiple

objects were added for processing

• Reload Image could assign the wrong instance of an image to a node, if the same image had been loaded more

than once into the Image Manager with different Color Spaces.

• Reload Image would error and abort when an empty Image Attribute was encountered on a node in your project.

• Reload Image would not replace/update instances of images that were used inside of Graph Groups / Materials

• The Triplanar Falloff Curve of the Texture Scatter Triplanar Node was inverted by default

• Non-Uniform Scaling in combination with UV Rotation inside of Texture Scatter Triplanar was producing unexpected results

• Non-Uniform Scaling in combination with UV Rotation inside of Axis Projection was producing unexpected results

• Menu Path Finder did not display contents of nested submenus deeper than 2 levels.

• The 'Mask Presets' included in previous Extension Pack versions no longer need to be installed, since they are now included.

If you have installed them from a previous Extension Pack Version, it is recommended to uninstall them.

Please check the Uninstalling old Preset guide for more information

• For users downloading the Online Help to use offline, the Deployment of the Online Help has changed.

Refer to the Download Online Help Section for more information

• It is now possible to move the Extension Pack Resources that contribute to the large file size out of the main application.

Refer to the Moving Resources Help Section for more information

• Please refer to the Class/Method Overview for a list of changes

• Please refer to the GL Function Overview for a list of changes



---

• Jens Kafitz - http://www.jenskafitz.com

The 'Leviathan' Demo Asset used in Tutorials and Help Files has been supplied by Think Tank Training Center.

• Paul H. Paulino (Texturing) - Artstation
• David Letondor (Modeling) - Artstation

• Peter Aversten
• Burce Boran
• Zak Boxall
• Qingmao Chen
• David Eschrich
• Pim Hendriks
• Gael Kerchenbaum
• Antoni Kujawa
• Beom Hee Lee
• Paul H. Paulino
• Eugene Riecansky
• Kelvin Tam
• Vincicius Villela
