Selection Group Management


  • Where to find it:


    • Selection Groups Palette / Right Mouse Click
    • Main Window / Extension Pack / Selection Groups /


  • Shortcut: (unassigned, use "Edit / Shortcuts" to assign)

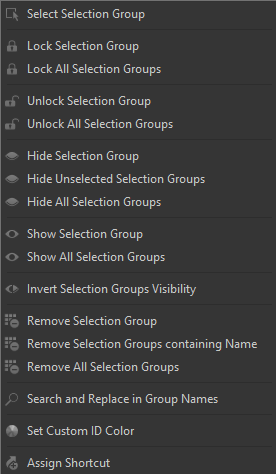

Extension Pack adds a variety of useful options to the right mouse click dialog in the selection group palette.



Hide All / Show All Selection Groups


Will hide or show all Selection Groups contents in the viewport.


Hide Unselected Selection Groups


All Selection Groups except the selected one will be hidden


Invert Selection Group Visibility


Will toggle all Selection Groups in the list to their opposite visibility state. Hidden ones become visible, visible ones

become hidden


Lock All / Unlock All Selection Groups


Will Lock/Unlock all Selection Groups in the List.

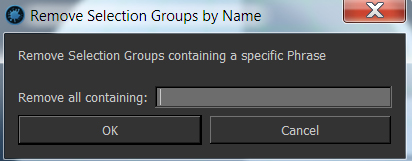

Remove Selection Groups containing Name


Will delete all Selection Groups from the list that contain a specific string in their name



Remove All Selection Groups


Will delete all Selection Groups or all Selection Groups of a certain Type

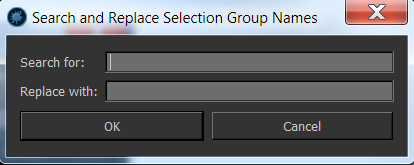

Search and replace in Group Names


Allows you to rename selection groups by search & replace methods.

To delete parts you were searching for leave 'Replace with' empty

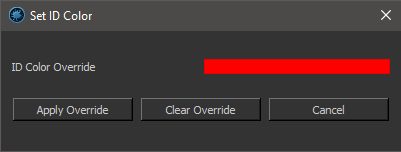

Set Custom ID Color


Allows you to set/clear an Override Color for Material ID Channel baking.

The same functionality is available in the 'Material ID Channel from Selection Groups' Tool.
