Released by Jens Kafitz, 2020 - www.MariExtensionPack.org   | Join us on  & or







RELEASE: August 7th, 2020


BACKWARDS COMPATIBLITY: Extension Pack 5 | 5 R2 | 5 R3


MINIMUM REQUIREMENT:  MARI 4.1v2


RECOMMENDED:  MARI 4.6v1 or higher



MARI NON-COMMERCIAL is not supported due to restrictions by the Foundry









ICONLEGEND


= New Feature

= Feature Update

= Feature available in Nodegraph only




EXTENSION PACK 5 R4


  • Extension Pack 5 R4 for Mari 4.x is the third of multiple free updates for customers of the Extension Pack 5 series.

For a full overview of the features released in Extension Pack 5 see its dedicated release notes.




NEW FEATURES


Set up your nodes and materials directly from the Image Manager



The Images will be inserted if the Node/Layer has Image Attributes, so it works great for Materials.


To make it a one click solution the tool will continually learn more about your preferred assignments so even if your naming convention might not match one of

the predefined standard names it will learn what you like !



Directly ingest image manager selections into your selected node or layer



Improved Decal Workflows & Automatic Locator Creation



  • New Decal Material Templates have been added to the Material Template Shelf and Mari Material Ingester, allowing you to quickly add details to your textures

via non-destructive projections. Also works great with the Image Manager Material Ingester !


  • Getting your projections setup with locators is now a one click workflow. If a node or layer is selected that supports locator assignment, simply switching to the

'Transform Object Tool' will handle all the locator setup for you, so you can get right to positioning things where you want them.

If you click back on the object, the temporary locator will be removed from the scene so there's no clutter !


All of the new tools working together:

New Decal Material Templates, ingesting from the image manager and easy one click projection transforms via the standard mari transform tool right in the viewport



Scattered Materials



  • Apart from new Decal Material Templates, you now also can scatter Decal Materials all over your object using the new Scatter Material Templates


Scattering a Megascans Decal to create a new, unique and non-repeating material

Project Templates

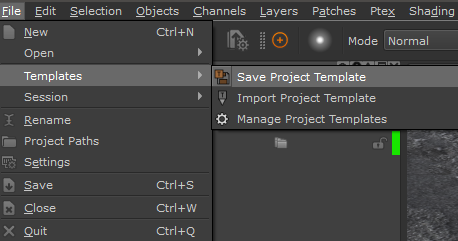

  • A brand new way to get started with your projects has been added to the file menu: Project Templates.



Project Templates allow you to save a project and import it into another one to get your preferred setup up and running quickly.

Of course you don't need to always manually import it - you can have it done for you automatically on Project creation.


Project Templates support all Mari has to offer


      • Nodegraphs (Nodes, Shaders, Channels etc.) with or without Paint Information
      • Projectors/Cameras
      • Light Rigs
      • Viewport Configuration (current camera position, viewer, viewport settings etc.)
      • even Preferences are supported


To make it fit more neatly into pipelines, Templates can also be added and imported via Environment Variables.





'Baked Images' for Nodes



  • Many nodes that have Image Properties can now directly inherit their image from a Bake Point via a Node Port.

This allows you to have complex nodegraphs as a source inside those nodes.


Nodes that support such behavior are:

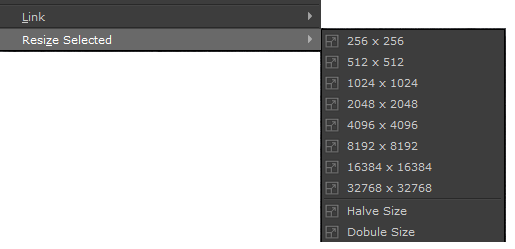

Patch resizing now works on Paint Nodes and Bake Points


  • You might have never realized but the 'Resize Patch' Menu Option under Patches has no effect on Paint Nodes in Nodegraph Workflows.

Not anymore ! Extension Pack 5R4 replaces these options with its own and 'Resize Patch' now correctly works in Both Layerstack and Nodegraph ..

and to top it off it now also works on Bake Points (after they have been baked once) !



Hotboxes




  • There's also a new default Hotbox on the Nodegraph Hotkey 'U' (Mari 4.6v4+) to create Manifold Nodes:




New Presets in Mask Shelf


  • There's some new presets in the Procedural Tab of the Mask Shelf based on Nodes introduced in recent Mari releases.

You will need Mari 4.6 or higher to use those though.



Customize your Layout to your needs


You will need Mari 4.6 or higher to use those though.

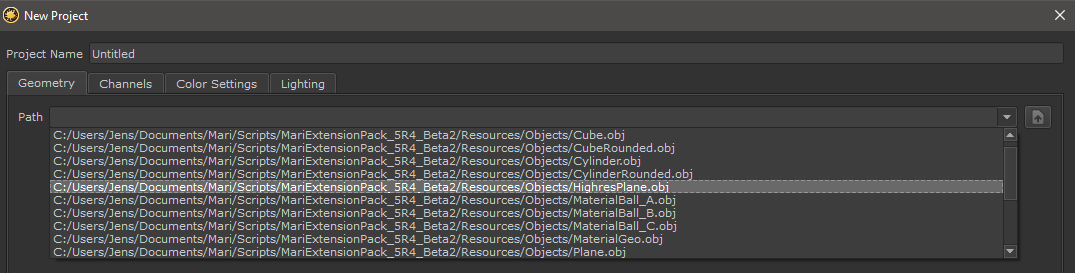

Easy access to default Objects


  • Extension Pack Default Objects that are otherwise available via the Object Palette are now easily accessible in the File List of the 'New Project' Window

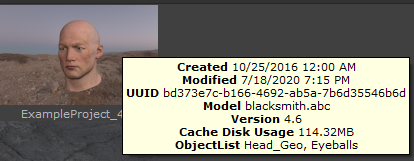

More Project Information


  • Some of you have a lot of projects in Mari and it might not always be easy apparent from the screenshot what is in them.

To help you out, the Project Tool tip now lists all Objects in your Project as a 'Object List'

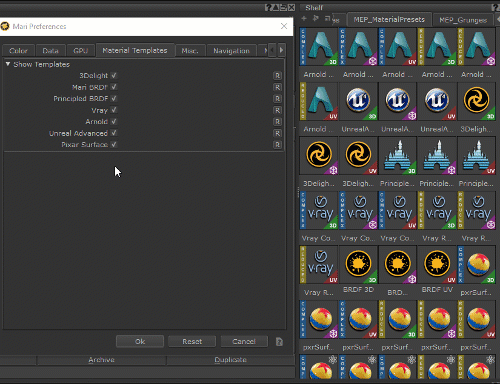

See only Material Templates you want to


you really need. This can also be set via Environment Variables for those of you working in a Studio Pipeline !





FEATURE CHANGES - TOOLS

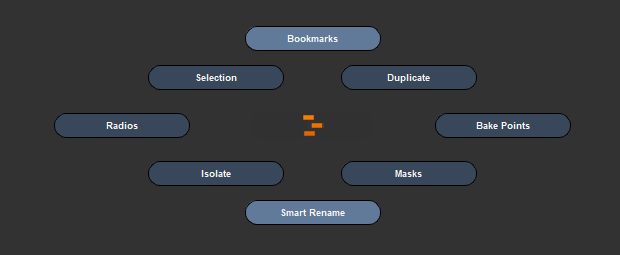

Hotboxes




Mask Shelf


  • All Presets in the Procedural Tab of the Mask Shelf have been upgraded to use the latest node versions


  • Mask Shelf Grunge Presets available in the procedural tab have been standardized with consistent controls in-between presets


  • In the Mask Shelf you can now exclude items via the Search bar by prefixing with an exclamation mark ('!')

 For example:


    • 'Axis' will give you the two items Axis Mask and Axis Projection as a search result
    • 'Axis+!Projection'  will give you only Axis Mask as a search result, since the Term 'Projection' is marked to be excluded.


  • Improvements to Error Handling of Mask Shelf, when a Preset is changed, moved or deleted and the target location is in use by another user/has access restrictions.

 The preset will now first be tested for complete read/write permissions before doing anything to it.

Nodegraph Only Hotkeys


  • Mari 4.6v4 introduces the ability to set Hotkeys directly to a 'Nodegraph' Context via Scripts.  As a result Extension Pack will now pre-assign a series of

hotkeys for common Nodegraph commands. Of course if you already have one of those hotkeys in use, Extension Pack will respect that and not overwrite it.


The following hotkeys are now pre-assigned to work when the cursor is in the Nodegraph (Mari 4.6v4 or higher):


    • Node Creation Hotbox: C
    • Nodegraph Tools Hotbox: V
    • Manifold Creation Hotbox: U
    • Merge Node | MultiChannel Merge Node (depending): M
    • Radio Node: R
    • Radio Transmitter Node: T
    • Connect to Transmitter Node: Shift + R
    • Toggle Radio Node(s): Ctrl + Shift + R
    • Jump to Node Input: [
    • Jump to Node Output: ]
    • Smart Rename Node(s): Shift + N
    • Mulit Rename Node(s): Ctrl + N
    • Duplicate with Connections: Shift + D
    • Duplicate: Ctrl + Shift + D
    • Bookmark List: F2
    • Create Channels from Node:  F4
    • Histogram Scan Node: H
    • Histogram Range Node: Shift + H
    • Histogram Select Node:  Ctrl + H
    • Swap Node Type: X
    • Copy Node Attributes: Ctrl + Shift + C
    • Paste Node Attributes: Ctrl + Shift + V
    • Select Upstream Nodes: Shift + <
    • Bake to Paint Node: Alt + B
    • Mask Shelf (toggle to show/hide): S


Misc




  • The Channel Layer Dialog now supports Double Clicking a channel to add it




  • Smart Rename nodes now recognizes Mari 4.6+ Geo Channel Nodes and will correctly rename connected nodes according to the geo channel that is in use on the node.


  • Reload Image Manager Image will now always update all instances of the image used in the project. The previous choice to select if to update only

current Object or all Objects has been removed to make the tool easier to use.


  • The Environment Variable to add Presets to the Channels from Node Tool has been renamed to MARI_EP_CHANNELS_FROM_NODE


  • For ease of access all available Extension Pack Environment variables are now listed on a single page here






FEATURE CHANGES - NODES


Material Templates


  • The Intensity Slider in the Bump and Displacement Group of Material Templates has been removed. Instead the 'Range' Slider can now extend past 1.0




Histogram Scan & Histogram Select


  • Histogram Range now can extend the Range past 1.0. Existing Nodes in old projects will not change.




Normal Format Convert & Normal Rotate



  • The Normal Rotate Node can now accept the definition of its normal format as an incoming node stream via a node port e.g. from the Normal Format Converter



Pattern Engine Nodes


  • Pattern engine nodes now transmit rotational data via the Output UV Port, making them work nicely with Normal Maps when driving other nodes with the scatter nodes


  • Pattern engine nodes now have an additional FlipX | Flip Y Attribute in the Symmetry Control Group


  • Pattern engine nodes now have an additional Pattern Random Output Port which Outputs the node internal randomization values.






BUGFIXES


Material Ingester




Nodes





  • Gradient from Image node contained a NAN in a default value, causing 'Convert Layer' messages on project open


Layer Tools


was inside a Multi Channel Group.


(requires Mari 4.6 or higher)

Custom Channel Exporter


  • Fixed a bug in the Custom Channel exporter where changes to Locators assigned to nodes did not mark a channel as dirty when using 'Export Modified UDIMs only' (Regression)


Mask Shelf  (Smart Masks,Procedural Presets)


  • Saving a Preset did not save Paint Data into the preset


  • Fixed a bug in the Smart Mask Setup Tool, where recalculating blurred curvature channels in a project where they had been calculated previously,

would flatten the originally supplied curvature channel


  • Smart Mask Noise Seed Slider Range has been reduced since very high values could affect the scale of the Noise.


  • Several of the procedural triplanar presets in the mask shelf were broken, resulting in a red error screen when used.


Nodegraph


  • Creating a Merge Node via the Smart Merge  Action was printing out a debug message into the python console on each use



(requires Mari 4.6 or higher)


  • Backdrop colors  were not randomized on creation, if the backdrop was created via the TAB Menu


  • Some randomized Backdrop colors  were too dark by default


Unprojecting


  • Quick Unproject Methods found in the Camera Menu (Unproject Layer, Channel, View) could error if the OCIO Colorspace Configuration file

used did not contain a 'raw' colorspace


Hotboxes


  • Default Hotbox Installation could on rare occasions error and prevent Extension Pack from loading fully


  • Renaming a Hotbox that already had a hotkey assigned would not transfer the hotkey to the renamed hotbox and block the hotkey fro, being reassigned

until Mari was restarted.


Shelf




Mari Startup


  • The Timeout value for a failed License Server connection for Studios without Internet Connection was set too high, resulting in long Mari Program Start Times.





DEPLOYMENT UPDATES



  • The Contents of Resource Folder have been updated.

If you have previously moved the resource folder to a location outside of the installation directory, you should replace it with the new one

using the method described here


  • This Help File Document has been updated

If you have previously downloaded the Help Files for offline usage you should replace it with the new one using the method described here
